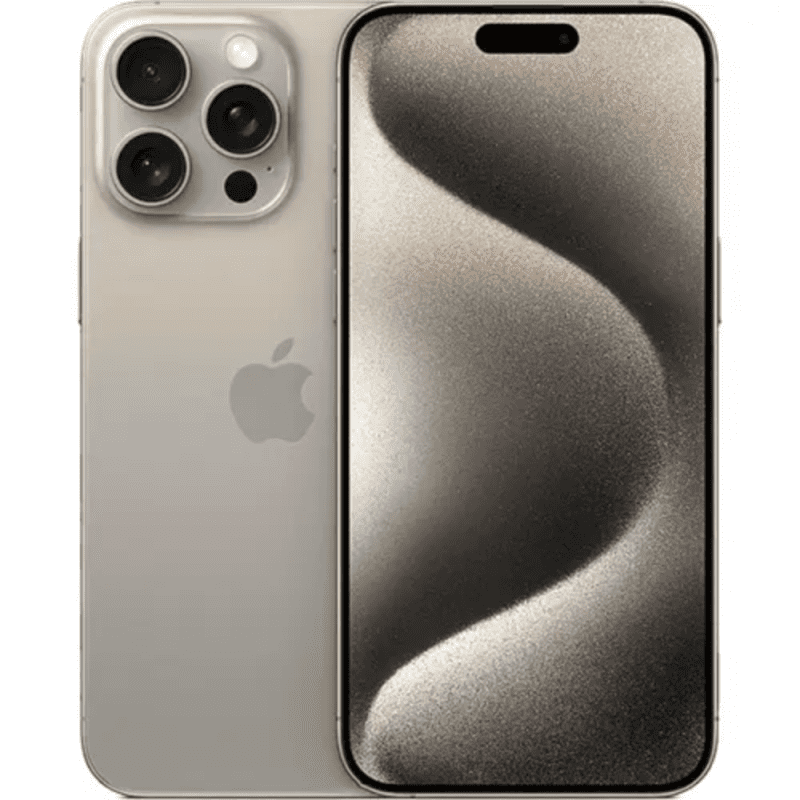

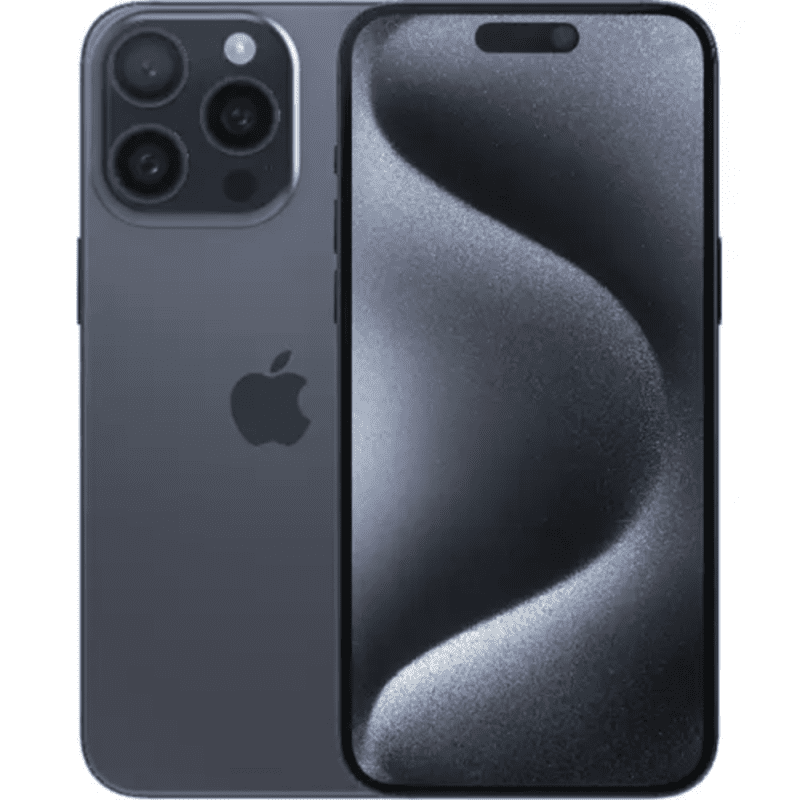

Apple iPhone 15 Pro Max

Apple iPhone 15 Pro Max – Specifications

Storage

• 256GB

• 512GB

• 1TB

Display

• Type:?Super Retina XDR display with ProMotion

• Size:?6.7-inch (diagonal) all-screen OLED display

• Features:

  • Dynamic Island

  • Always-On display

  • ProMotion technology with adaptive refresh rates up to 120Hz

  • HDR display

  • True Tone

  • Wide color (P3)

  • Haptic Touch

  • 2,000,000:1 contrast ratio (typical)

  • Brightness:

    • 1000 nits max brightness (typical)

    • 1600 nits peak brightness (HDR)

    • 2000 nits peak brightness (outdoor)

• Fingerprint-resistant oleophobic coating

• Support for display of multiple languages and characters simultaneously

Size and Weight

• Height:?6.29 inches (159.9 mm)

• Width:?3.02 inches (76.7 mm)

• Depth:?0.32 inch (8.25 mm)

• Weight:?7.81 ounces (221 grams)

Design

• Aerospace-grade titanium frame

• All-new programmable Action button

Durability

• Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529

Chip

• A17 Pro chip

• New 6-core CPU with 2 performance and 4 efficiency cores

• New 6-core GPU

• New 16-core Neural Engine

Camera
Pro Camera System

• 48MP Main:?24 mm, ?/1.78 aperture, second-generation sensor-shift optical image stabilization

• 12MP Ultra Wide:?13 mm, ?/2.2 aperture and 120? field of view

• 12MP 2x Telephoto:?48 mm, enabled by quad-pixel sensor

• 12MP 5x Telephoto:?120 mm, ?/2.8 aperture, tetraprism design with 3D sensor-shift OIS

Zoom & Features

• 5x optical zoom in, 2x optical zoom out; 10x optical zoom range

• Digital zoom up to 25x

• Customizable default lens

• Sapphire crystal lens cover

• Adaptive True Tone flash

• Night mode portraits enabled by LiDAR Scanner

• Apple ProRAW & ProRes support

• Macro photography

• Image formats captured: HEIF, JPEG, and DNG

Video Recording

• Recording Quality:

  • 4K video at 24, 25, 30, or 60 fps

  • HDR video with Dolby Vision up to 4K at 60 fps

  • Cinematic mode up to 4K HDR at 30 fps

  • Action mode up to 2.8K at 60 fps

  • ProRes video recording up to 4K at 60 fps (external recording)

• Professional Features:

  • Log video recording

  • Academy Color Encoding System (ACES)

• Stabilization:

  • Second-generation sensor-shift OIS (Main)

  • 3D sensor-shift OIS and autofocus (5x Telephoto)

TrueDepth Front Camera

• 12MP camera

• ?/1.9 aperture

• Autofocus with Focus Pixels

• ProRes video recording support

• 4K HDR video recording with Dolby Vision

Connectivity

• Cellular:?5G (sub-6 GHz and mmWave)

• Wi-Fi:?Wi-Fi 6E (802.11ax)

• Bluetooth:?5.3

• USB-C:?USB 3 support (up to 10 Gb/s)

• Ultra Wideband:?Second-generation chip

Charging and Battery

• Video Playback:?Up to 29 hours

• Fast Charge:?Up to 50% charge in 30 minutes with 20W+ adapter

• Wireless:?MagSafe up to 15W, Qi up to 7.5W

Sensors

• Face ID

• LiDAR Scanner

• Barometer

• High dynamic range gyro

• High-g accelerometer

• Proximity sensor

• Dual ambient light sensors

Operating System

• Ships with iOS 17

In the Box

• iPhone with iOS 17

• USB-C Charge Cable (1 m)

• Documentation
