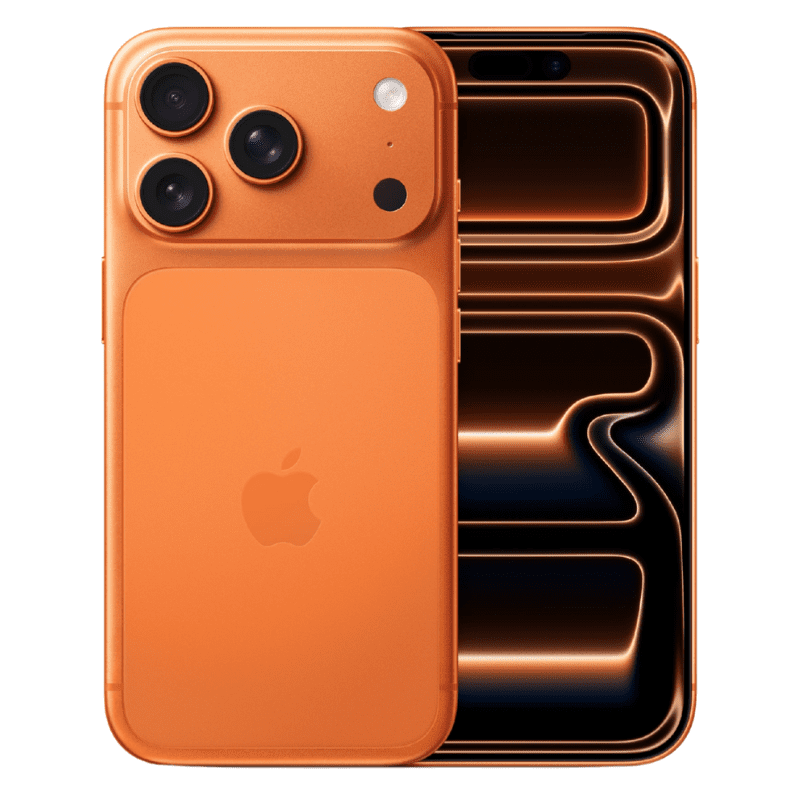

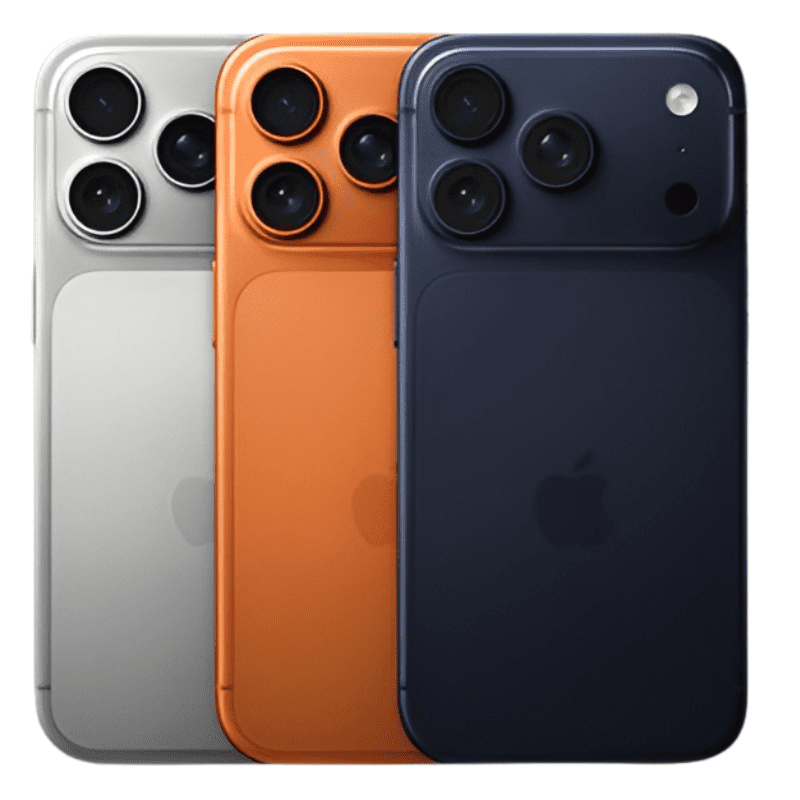

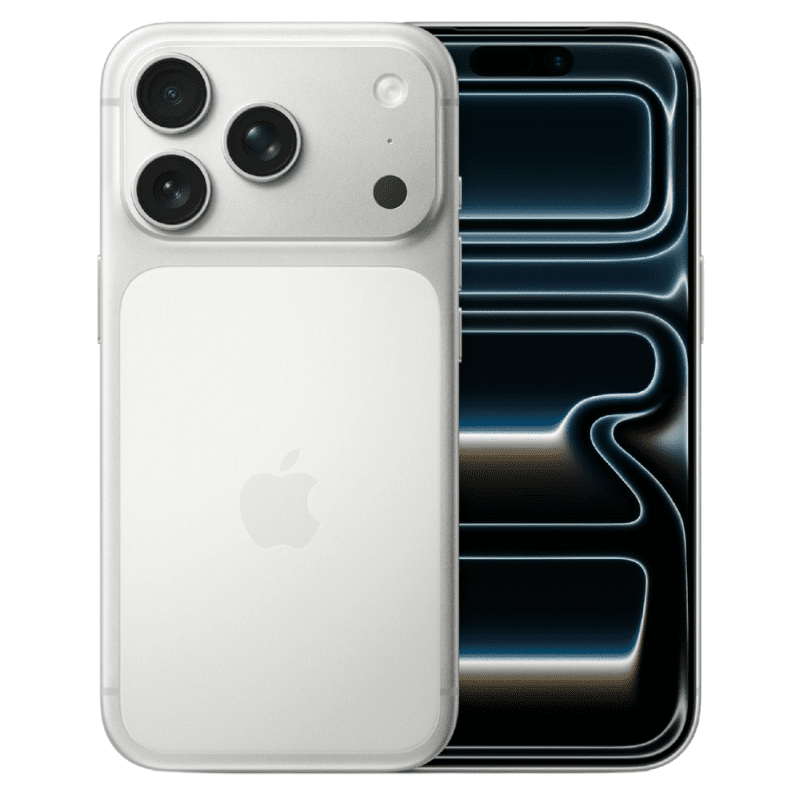

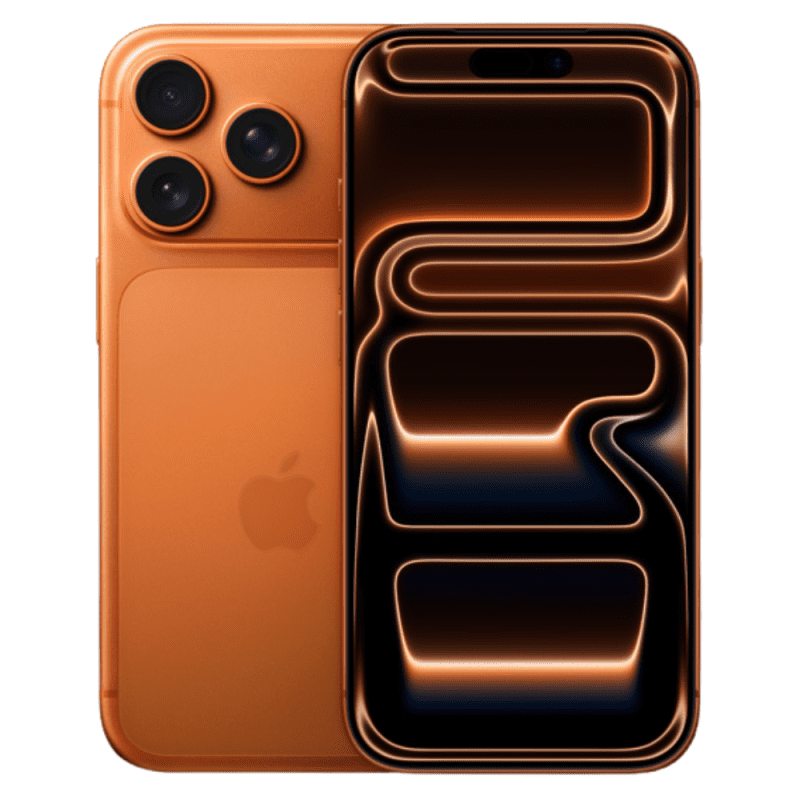

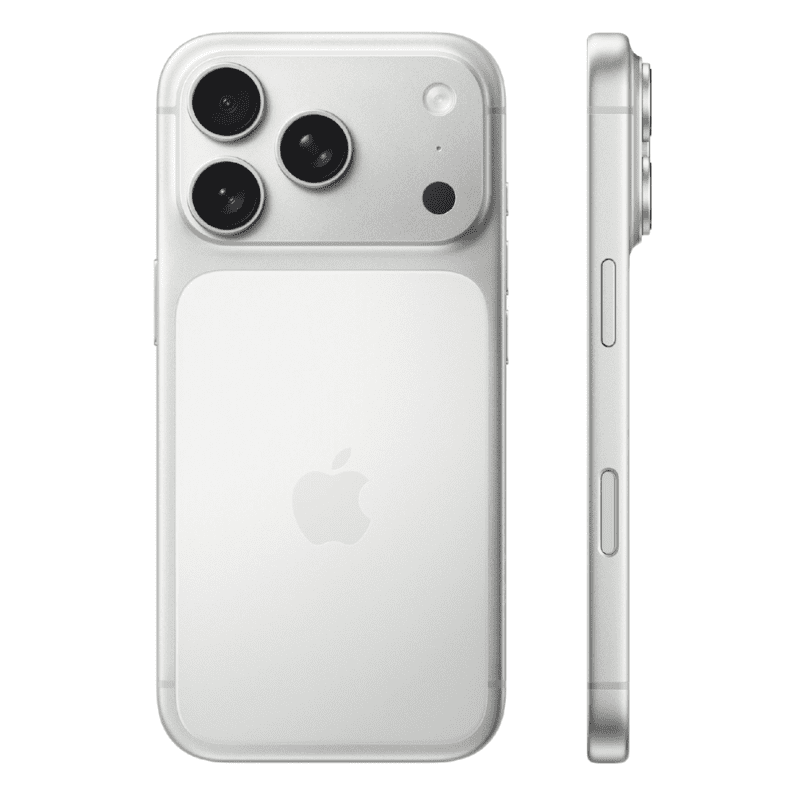

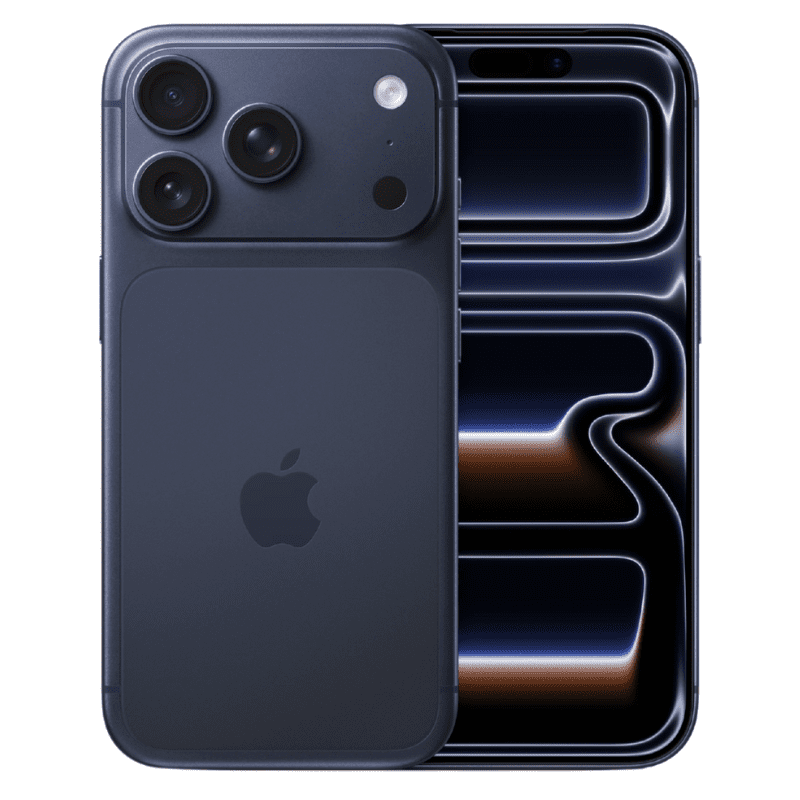

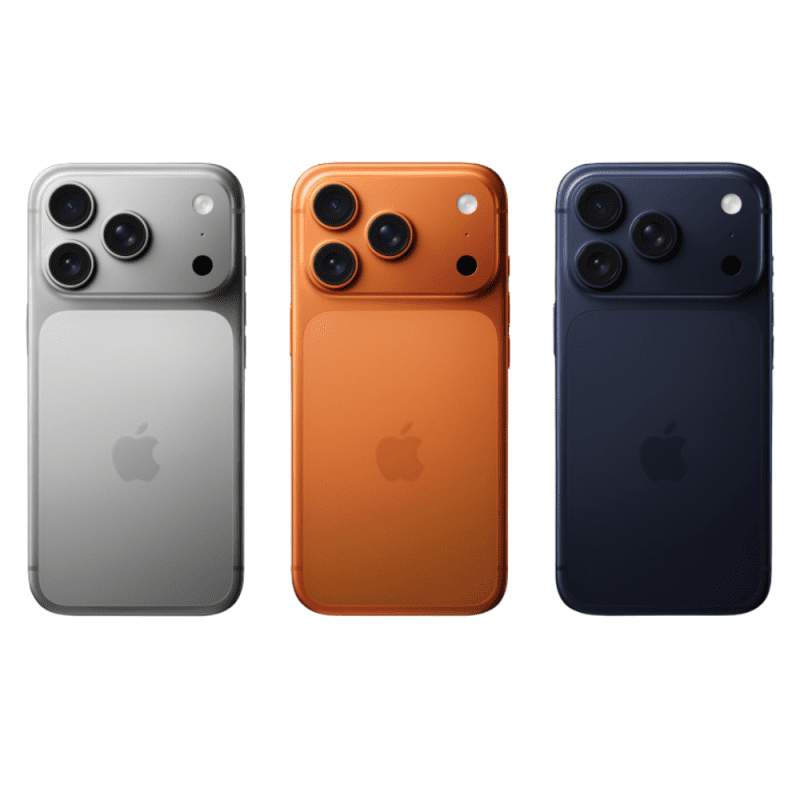

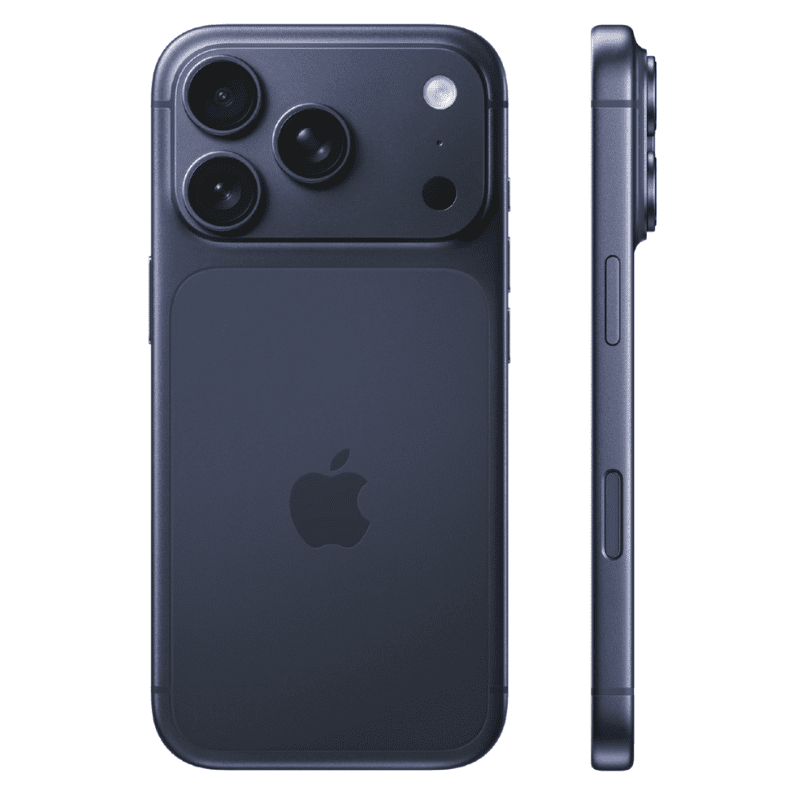

Apple iPhone 17 Pro Max

Capacity

• 256GB

• 512GB

• 1TB

• 2TB

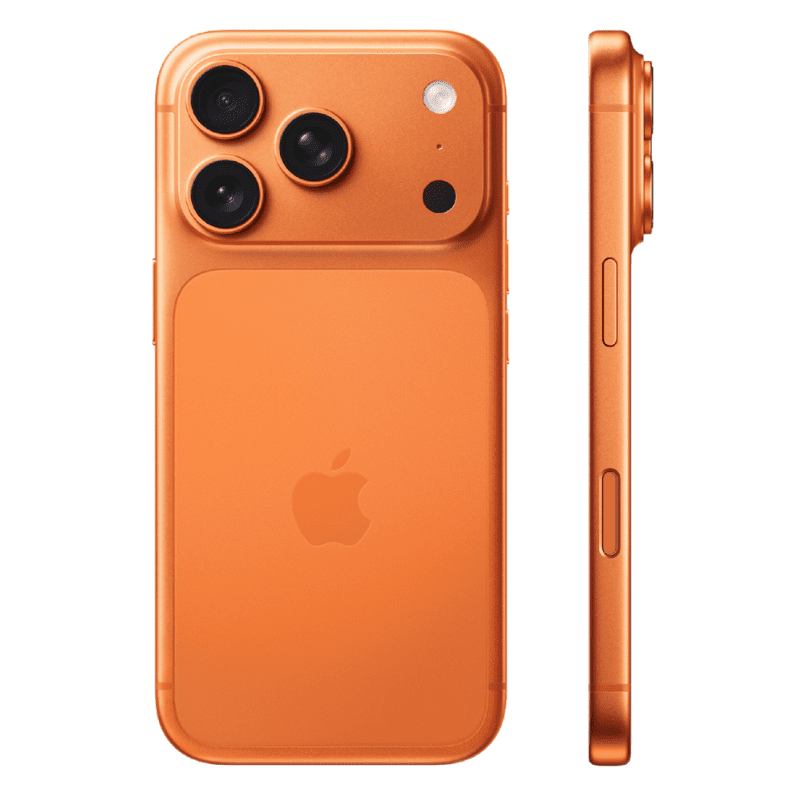

Size and Weight

• Width:?3.07 inches (78.0 mm)

• Height:?6.43 inches (163.4 mm)

• Depth:?0.34 inch (8.75 mm)

• Weight:?8.22 ounces (233 grams)

Display

• Dynamic Island

• Always-On display

• ProMotion technology with adaptive refresh rates up to 120Hz

• HDR display

• True Tone

• Wide color (P3)

• Haptic Touch

• 2,000,000:1 contrast ratio (typical)

• Brightness:

  • 1000 nits max brightness (typical)

  • 1600 nits peak brightness (HDR)

  • 3000 nits peak brightness (outdoor)

• Fingerprint-resistant oleophobic coating

• Anti-reflective coating

• Support for display of multiple languages and characters simultaneously

Durability

• Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529

Chip

• A19 Pro chip

• 6-core CPU with 2 performance and 4 efficiency cores

• 6-core GPU with Neural Accelerators

• 16-core Neural Engine

• Hardware-accelerated ray tracing

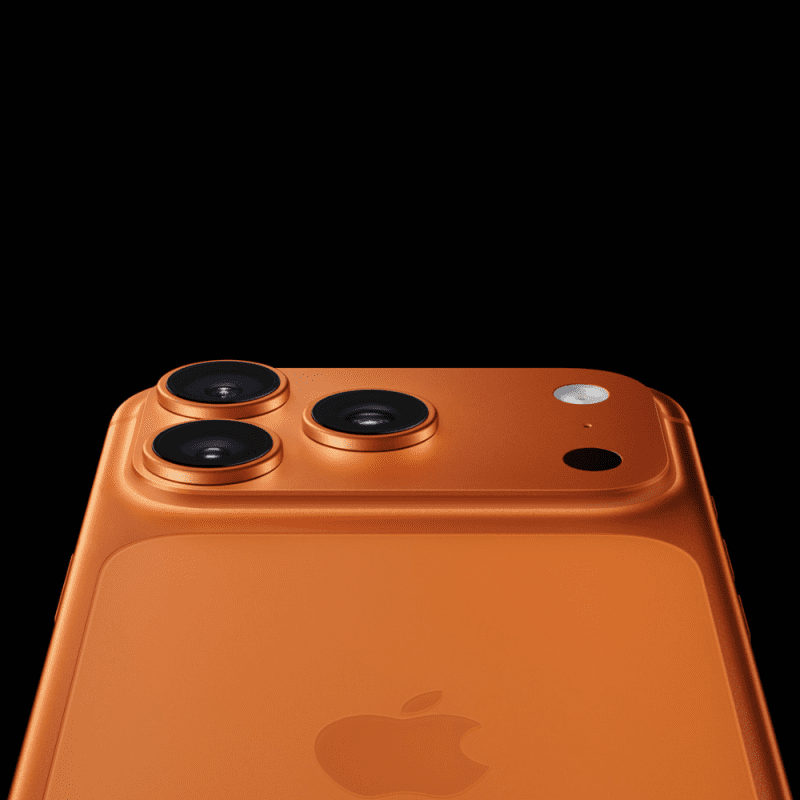

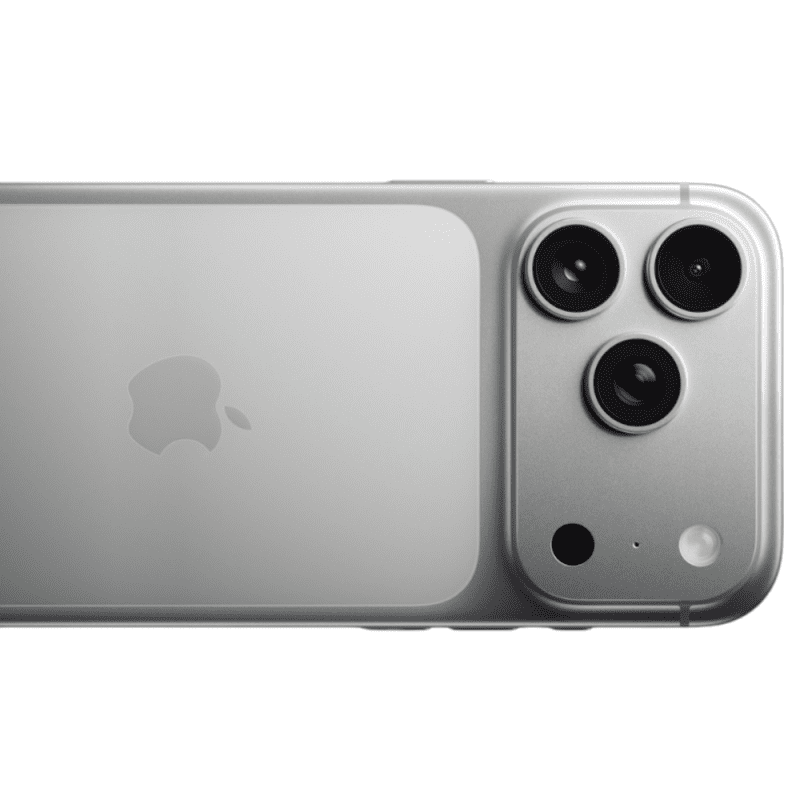

Camera
Pro Fusion Camera System

• 48MP Fusion Main:?24 mm, ?/1.78 aperture, second-generation sensor-shift optical image stabilization, 100% Focus Pixels

• 2x Telephoto (Optical-quality):?48 mm, enabled by the Main camera

• 48MP Fusion Ultra Wide:?13 mm, ?/2.2 aperture, 120? field of view

• 48MP Fusion Telephoto:?100 mm (4x), ?/2.8 aperture, tetraprism design, 3D sensor-shift optical image stabilization

• 8x Telephoto (Optical-quality):?200 mm, enabled by the Telephoto camera

Zoom & Features

• 8x optical-quality zoom in, 2x optical zoom out; 16x optical-quality zoom range

• Digital zoom up to 40x

• Customizable default lens

• Sapphire crystal lens cover

• Adaptive True Tone flash

• Photonic Engine, Deep Fusion, Smart HDR 5

• Next-generation portraits with Focus and Depth Control

• Night mode, Panorama (up to 63MP)

• Spatial photos, 48MP macro photography

• ProRAW support

• Image formats captured: HEIF, JPEG, and DNG

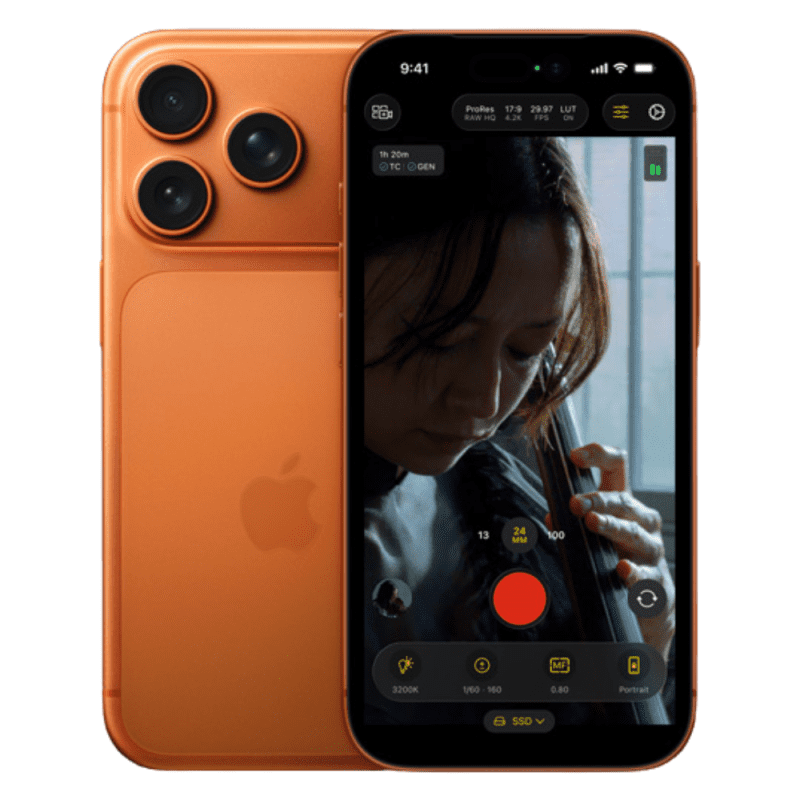

Video Recording

• Recording Quality:

  • 4K Dolby Vision at 24, 25, 30, 60, 100, or 120 fps

  • 1080p Dolby Vision at 25, 30, 60, or 120 fps

  • Cinematic mode up to 4K Dolby Vision at 30 fps

  • Action mode up to 2.8K Dolby Vision at 60 fps

  • Spatial video at 1080p and 30 fps

• Professional Features:

  • ProRes video recording up to 4K at 120 fps (external recording required)

  • ProRes RAW, Apple Log 2, Academy Color Encoding System (ACES)

  • Genlock support

• Stabilization & Audio:

  • Second-generation sensor-shift OIS (Main) & 3D sensor-shift OIS (Telephoto)

  • Cinematic video stabilization

  • Digital zoom up to 15x

  • Audio zoom with four studio-quality microphones

  • Spatial Audio and stereo recording

Power and Battery

• Video Playback:?Up to 39 hours

• Streamed Video Playback:?Up to 35 hours

Charging and Expansion

• USB-C connector with support for:

  • Charging

  • DisplayPort

  • USB 3 (up to 10 Gb/s)

• MagSafe and Qi2 wireless charging up to 25W

Sensors

• Face ID

• LiDAR Scanner

• Barometer

• High dynamic range gyro

• High-g accelerometer

• Proximity sensor

• Dual ambient light sensors

SIM Card

• Dual eSIM (two active eSIMs; stores eight or more)

In the Box

• iPhone with iOS 26

• USB-C Charge Cable (1 m)

• Documentation

Operating System

• iOS 26

• iOS is the world?s most personal and secure mobile operating system, packed with powerful features and designed to protect your privacy.

Accessibility

• Features include: VoiceOver, Zoom, Magnifier, Voice Control, Switch Control, AssistiveTouch, Eye Tracking, RTT and TTY support, Closed Captions, Live Captions, Personal Voice, Live Speech, Type to Siri, Vocal Shortcuts, Spoken Content.
